PLL LMX2326 and YIG oscilator |
(c) 2010 Pavel Pindora |
http://www.youtube.com/watch?v=t1nzWhPmQfs |

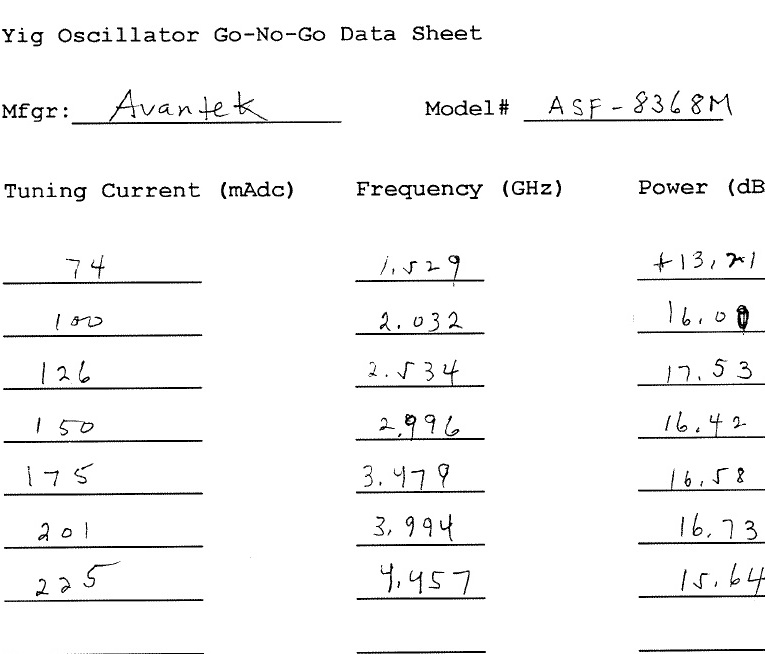

Oscillator AVANTEK Model ASF-8368M, tuning current (mAdc)/Frequency (GHz).Practically from cca 100mA. |
![]() |
![]() |

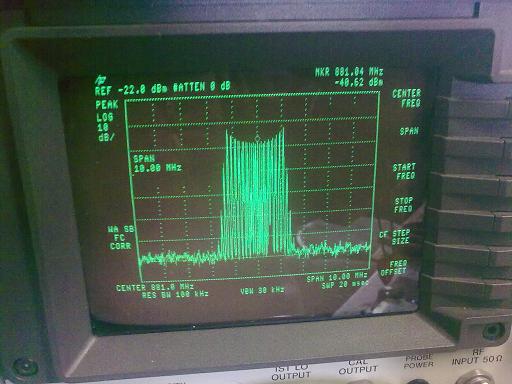

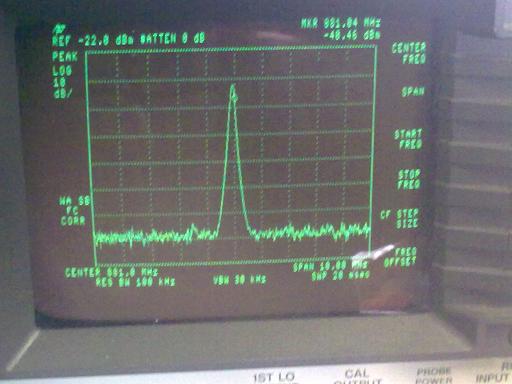

YIG - PLL control :-(((![]() YIG - Constant Current power for tune :-))) ![]() |

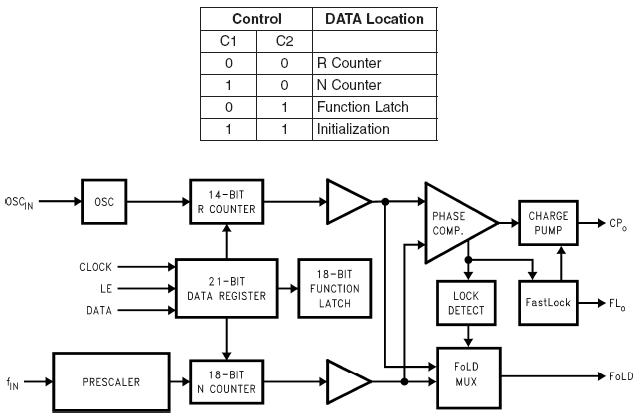

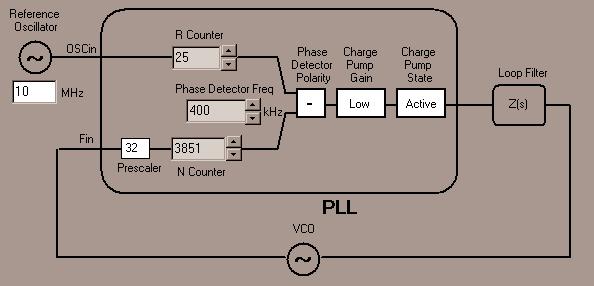

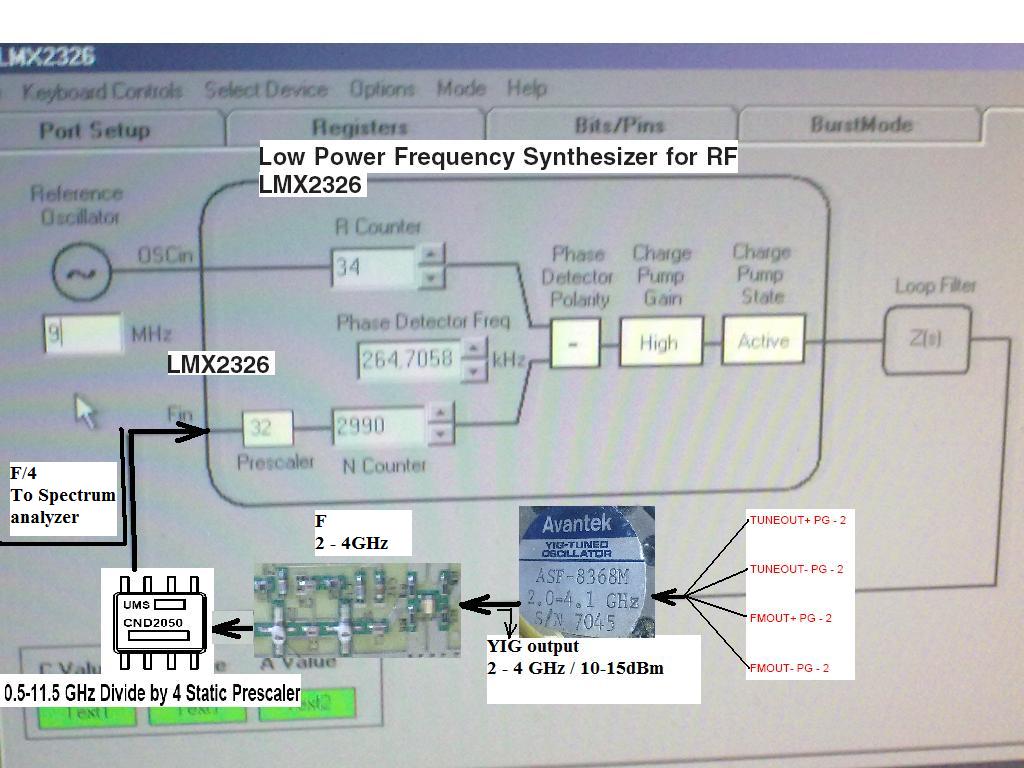

PLL LMX2326 |
![]() |
![]() |
![]() |

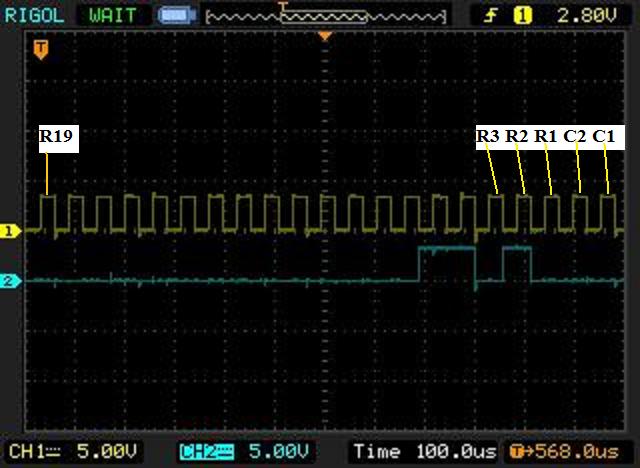

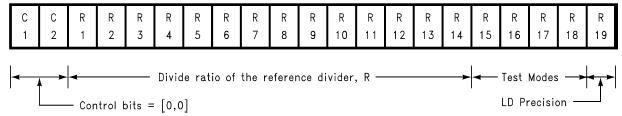

Set R Counter to 26 |
![]() |

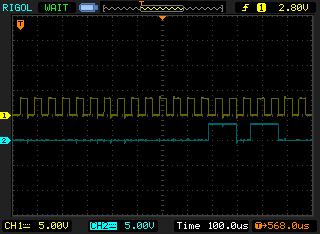

Set R Counter to 27 |
![]() |

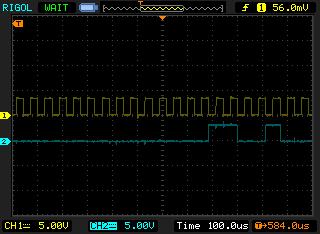

Set Phase Detector FreqR to 400kHz |
![]() |

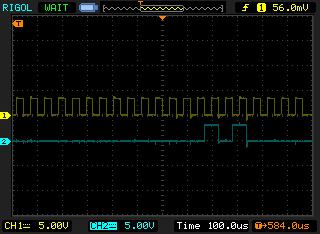

Set Phase Detector FreqR to 500kHz |
![]() |
Set N Counter to 3800 |
![]() |

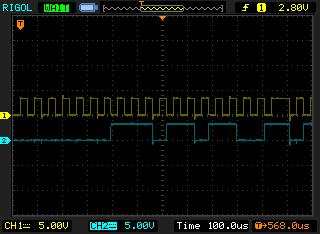

Set N Counter to 3801 |
![]() |
Set Phase Detector Polarity to Minus |
![]() |
Set Phase Detector Polarity to Plus |
![]() |
Set Charge Pump Gain to Low |
![]() |

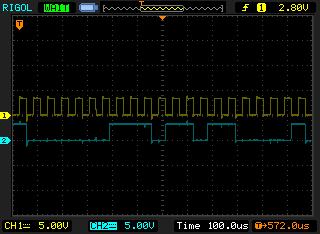

Set Charge Pump Gain to High |
![]() |

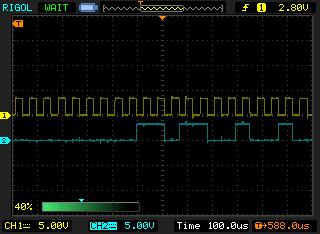

Set Charge Pump State to Tri state |
![]() |

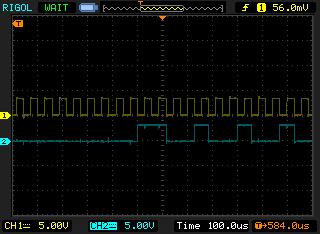

Set Charge Pump State to Active |
![]() |

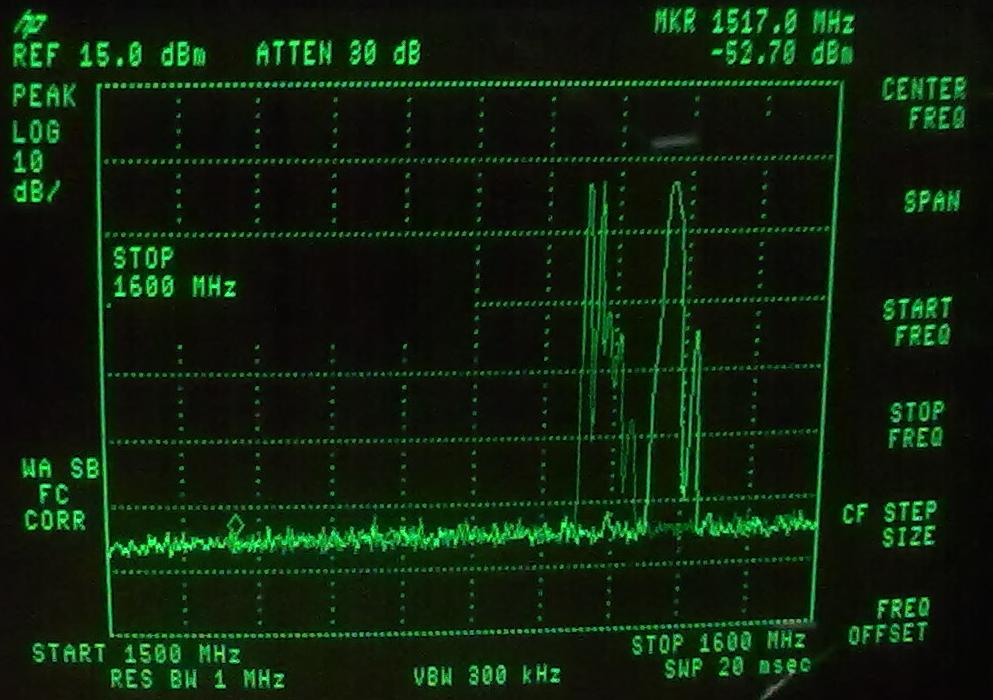

YIG oscilator output |
![]() |

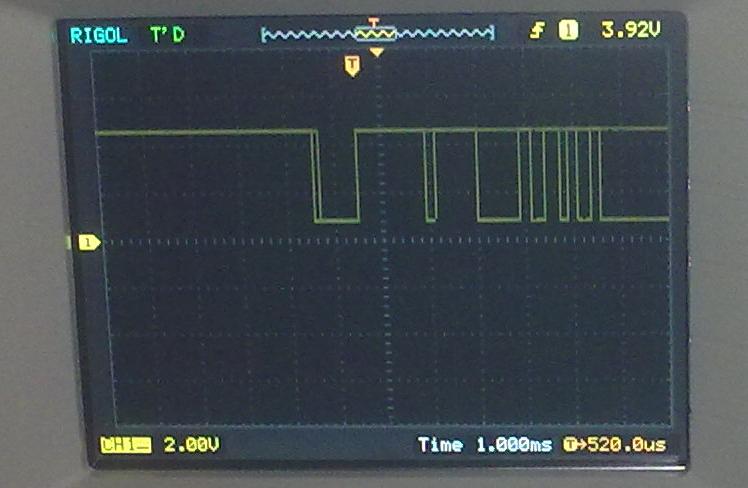

FoLD Pin |
![]() |
