the CAN bus, diagnostics



 13.06.2010  start of date

Send us your question .

(c) 2010 Pavel Pindora



Hardware



Hardware for CAN bus

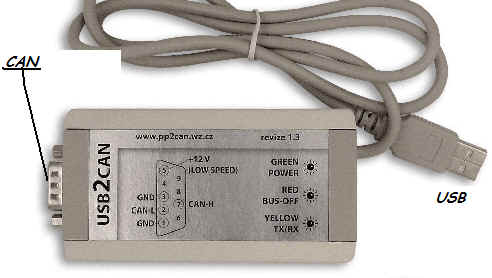

USB - CAN bus interface

http://www.papouch.com/shop/scripts/_detail.asp?katcislo=0212

http://www.usb2can.wz.cz/



MCP2515 SPI CAN bus controler http://www.microchip.com/stellent/idcplg?IdcService=SS_GET_PAGE&nodeId=1335&dDocName=en010406
82C250 CAN Transceiver 1Mb http://www.semiconductors.philips.com/acrobat_download/datasheets/PCA82C250_5.pdf





CAN diag.

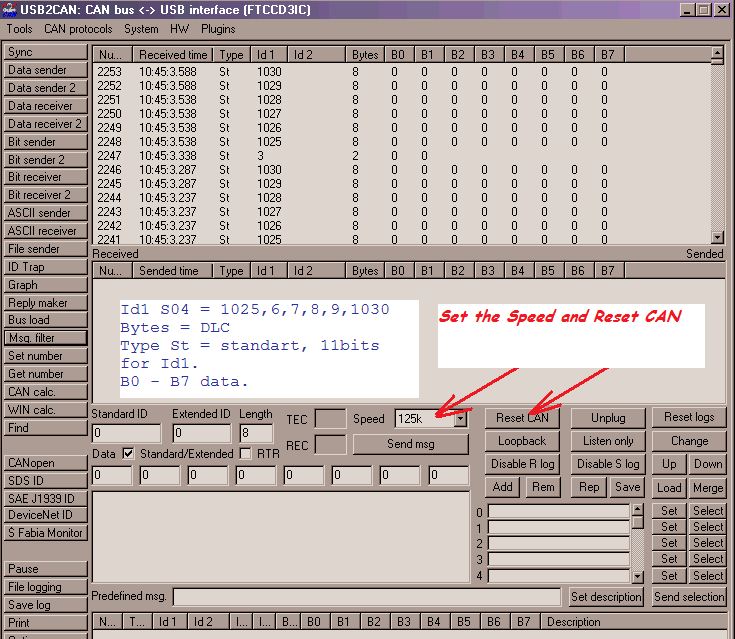

S04 (Id1 = 1025 - 1030) ,

Id1 = 3 test only, a noise



CAN diag.

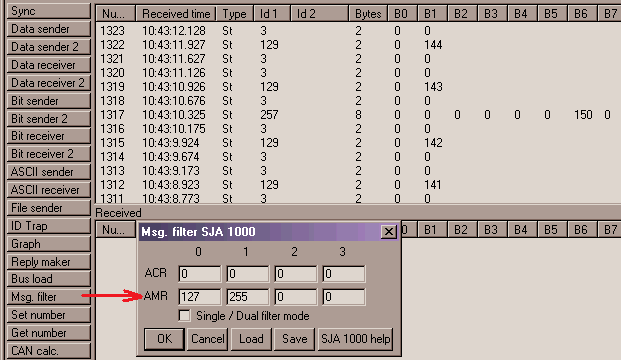

Masking received message  noise 3, KV04 257, SP04 129



Now, the Input of KV04 has been changed





CAN bus and some description  (11.2.2006)

Délka vedení (Length of wire) Resistance Ohm / 1m Max. Baud rate
< 40m <70mO/m  1Mbits/sec
< 300m <60 mO/m  500kbits/sec
< 600m <40 mO/m 100kbits/sec
< 1000m <26 mO/m 50kbits/sec







¨
