01.10.2006 XML App in BizTalk2006
16.9.2007 Correlation and two receive ports in BTS06

Microsoft .Net, BizTalk 2006

(BTS06 trial)

Problem during install BTS06 trial

During installation it gave an

Error 1904.Module C:\Program Files\Microsoft BizTalk Server 2006\BTSWMIProvider.dll failed to register. HRESULT -2147024770



By the help of  Visual C++ 6.0 Tools  DEPENDS.EXE , I localized missing DLL :

framedyn.dll
msvcr80.dll
atl80.dll
msvcm80.dll

wbemcomn.dll
mofcomp.exe

This files I copied to c:\Program Files\Microsoft BizTalk Server 2006.

Is possible that my path to VS2005 is no default (Program Files...) but  ( c:\Develop\Microsoft Visual Studio 8 )



BizTalk 2006 R2 trial Server Configuration : WMI Problem

run C:\Program Files\Microsoft BizTalk Server 2006>mofcomp.exe BTSWMISchemaXP.mof



01.10.2006 XML App. in BTS06

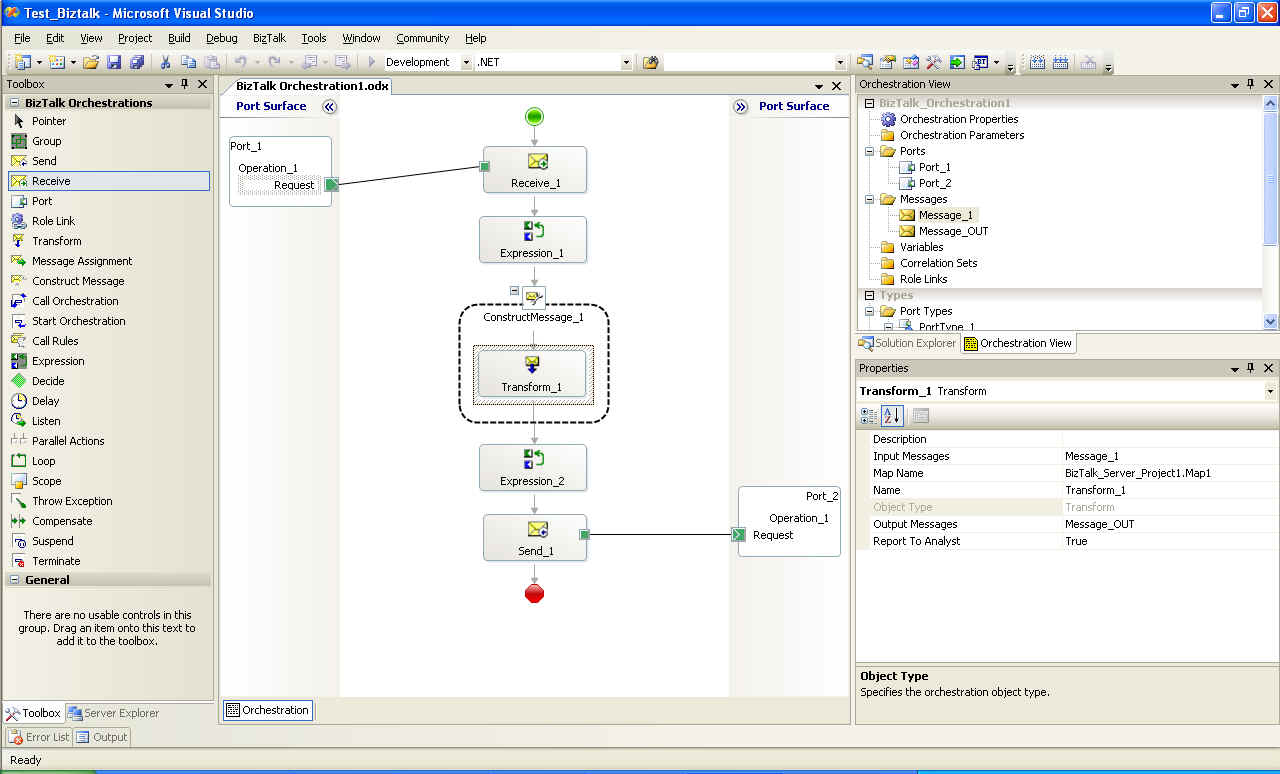

BizTalk_Test solution

 Receive XML message by vyrobci1.xsd , transform to XML by vyrobciOUT.xsd and send .





Task

Read file to Message_1
Create new Orchestration

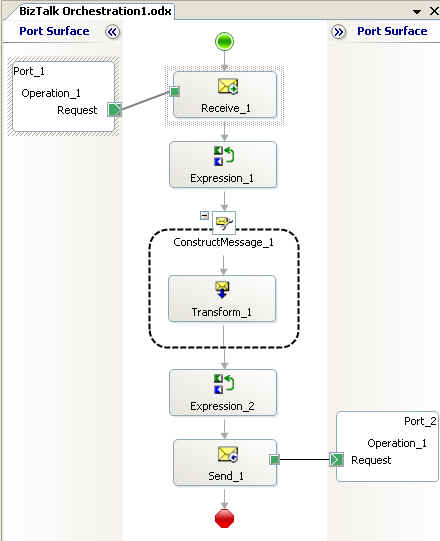

Orchestration







Add and define Receive port for FILE























Receive XML message by XSD vyrobci1.xsd











Message_1

Type  vyrobci1.xsd









Data from file to Message_1.

Add Receive component and connect to Port_1























































Transform Message_1



by XSD schema Vyrobci_OUT to XML Message_OUT, used Map1.btm









Map Name =  Map1.btm

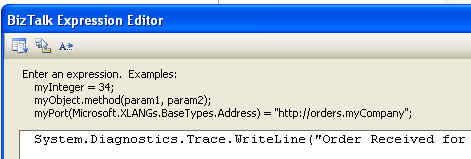

Some Expression_2



Send Message_OUT to XML file





Latter Receive and send to  MSMQ







16.9.2007 Correlation and two receive ports in BTS06

and Error message : sequential convoy the ports must be identical





Task

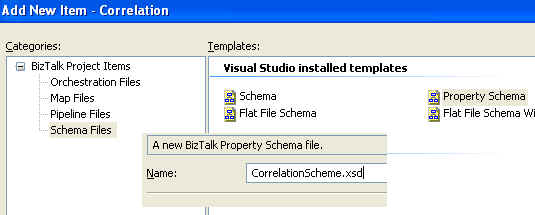

Create Property scheme


Insert one or more nodes

example CorrelationNode

Create Message scheme

for type message.

Message_1 - InputFile.xsd

Message_2 - InputFile2.xsd

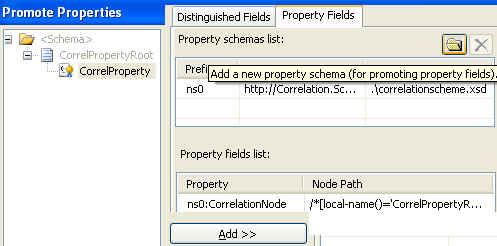

Promote property CorrelationNode in CorrelationScheme.xsd to InputFile (2) .xsd


Create the correlation

(Correlation Types)

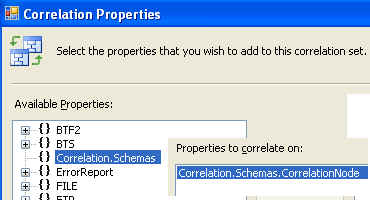

Correlation Type Properties
Add Correlation to  Correlation Sets
Set Correlation_to Init....

Set Correlation_to Follow...

This is all

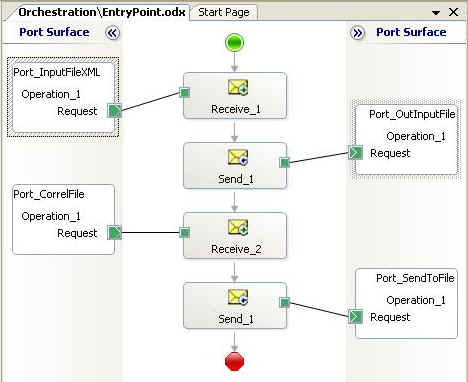

Receive_1 Init... Corre...

Receive_2 Foll... Corre...

And Error : sequential convoy the ports must be identical

there is :
